| Reel Specifications | |||||
|---|---|---|---|---|---|
 Be aware of different versions on some VSX models.Make sure to IDENTIFY which version you have BEFORE ordering any parts! | |||||
| Order Parts | View Schematic | Line Cap. &Specs. Info | Owners Manual | Reel Model | Design Change |
 |  |  |  | 12VSX | |
| | | | 16VSX (BEFORE J100001) | |
| | | | 16VSX (AFTER J100001) | |
| | | | 30VSX | |
| | | | 50VSX | |
| | | | 130VSX | |
| Model | Mono Cap. (yds/lb) | Braid Cap. (yds/lb) | Bearings | Max Drag @Strike / @Full |
Gear Ratio High / Low |
Line Retrieve High / Low (in) |
Weight (oz) | First Manf. | Year Disc. |
|---|---|---|---|---|---|---|---|---|---|

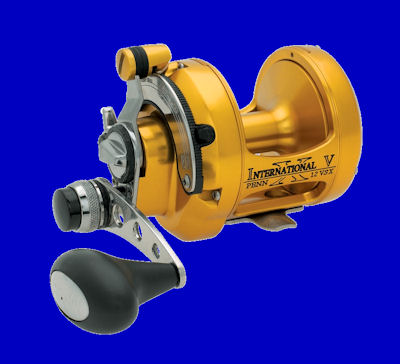

12VSX
|
360/30 300/40 220/50 |
750/50 625/65 525/80 |
4 | 24lbs. / 36lbs. | 5.0:1 / 2.5:1 | 38/19 | 33 | 2011 | -- |

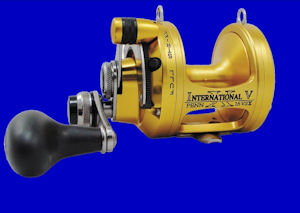

16VSX
|
1075/16 700/20 480/30 |
825/65 700/80 600/100 |
4 | 30lbs. / 42lbs. | 4.3:1 / 1.7:1 | 36/15 | 41 | 2005 | -- |
30VSX
|
525/30 320/50 280/60 |
775/80 650/100 550/130 |
4 | 38lbs. / 50lbs. | 3.8:1 / 1.6:1 | 37/15 | 60 | 2005 | -- |

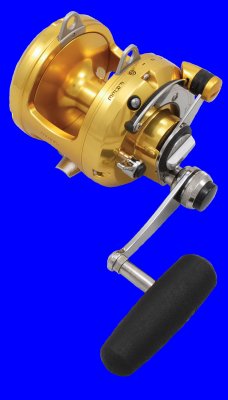

50VSX
|
500/50 440/60 330/80 |
875/130 775/150 650/200 |
4 | 44lbs. / 56lbs. | 3.1:1 / 1.3:1 | 34/14 | 76 | 2006 | -- |

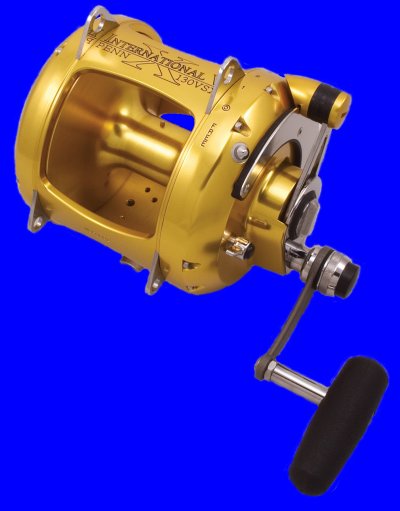

130VSX
|
975/130 850/150 525/200 |
3650/150 2975/200 2475/250 |
6 | 80lbs. / 100lbs. | 2.2:1 / 1.2:1/td> | 38/21 | 176 | 2006 | -- |
REEL INFO:
Penn International VSX models are constructed to achieve the extreme drag ranges expected by anglers fishing with super-braids. Unlike other products that advertise their high-potential drag settings but fail to inform you that these drag settings result in drag curves that are anything but angler friendly, and have a high potential to pop lines, pull hooks, and result in lost fish, Penn VSX models have been engineered to achieve these extreme drag settings while maintaining an appropriate and smooth drag curve throughout the entire range of the drag-lever. Simply put, Penn Engineering at its finest.
(Penn Advertising)
Construction:
