TROUBLESHOOTING HELP REQUESTED! Please [Contact us] if you find a bad link or get an error message, etc, and send us info about what page or item you were on when you saw the issue, with a link if possible, or a screen shot. Not the error screen, we need to know where you were before the error and what you were clicking on. Thanks! ~Mo, Parts & Tech Support| Reel Specifications | ||||
|---|---|---|---|---|
| Order Parts | View Schematic | Line Cap. & Specs. Info | Owners Manual | Reel Model |
 |  |  |  | SQL30LD |
| | | | SQL40LD |
| | | | SQL40LDLH (Left Hand Model) |
| | | | SQL50LD |
| | | | SQL60LD |
| | | | SQL60LDLH (Left Hand Model) |
| Model | Mono Cap. (yds/lb) | Braid Cap. (yds/lb) | Bearings | Max Drag @ Strike | Max Drag @ Full | Gear Ratio |
Line Retrieve | Weight (oz) | First Year | Year Disc. |
|---|---|---|---|---|---|---|---|---|---|---|

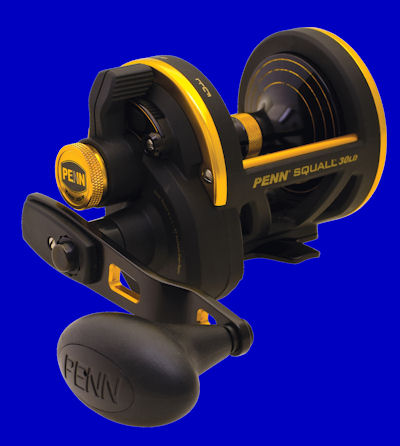

SQL30LD
|
390/20 • 350/25 • 260/30 | 1025/20 • 775/30 • 550/30 | 5+1 | 9 lbs | 13 lbs | 6.1:1 | 37 | 18.2 | 2011 | 2022 |
SQL40LD & SQL40LDLH
|
490/25 • 360/30 • 300/40 | 1075/30 • 750/50 • 625/65 | 5+1 | 14 lbs | 18 lbs | 5.1:1 | 37 | 20.9 | 2011 | 2022 |

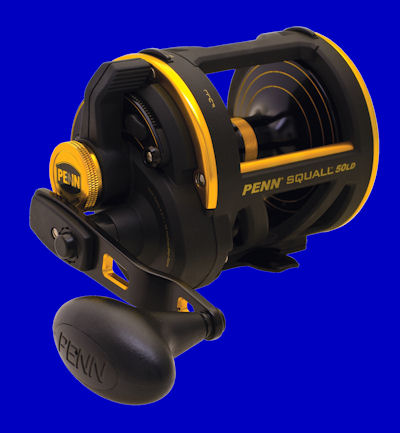

SQL50LD
|
500/30 • 420/40 • 310/50 | 1050/50 • 875/65 • 750/80 | 5+1 | 15 lbs | 20 lbs | 4.3:1 | 35 | 27.4 | 2011 | 2022 |

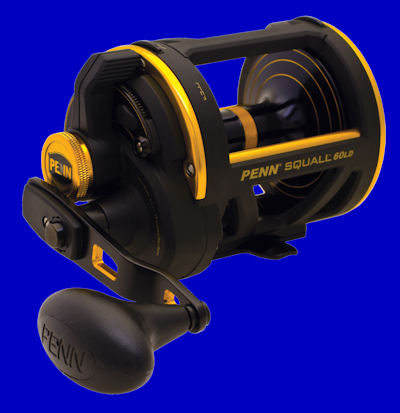

SQL60LD & SQL60LDLH
|
500/40 • 370/50 • 330/60 | 1050/65 • 900/80 • 775/100 | 5+1 | 20 lbs | 30 lbs | 4.3:1 | 35 | 28.1 | 2011 | 2022 |
REEL INFO:
Function and ergonomics were at the top of the list when we designed the new Squall™ lever drag reel. A lightweight graphite design holds our top-of-the-line drag system, Dura-Drag™. There are even left hand models in the line. (PENN Squall Lever Drag TV Commercial )
This reel is a great all-around reel for trolling and dropping back to hungry sails and marlin, or battling big dorado, wahoo and tuna. It would also perform well as a kite reel for those anglers who fish the Florida sailfish events. It's high speed with a 6.1:1 Gear
Ratio, so it would also make a smart choice when fishing the bottom. With such versatility, it's safe to say the Squall Lever Drag is pretty much ready to tackle anything you throw at it. The reel comes in four sizes, two of which are offered in left-hand versions
(www.bdoutdoors.com 2011 Review)
HISTORY:
The Squall reel has it's roots in the 525Mag series. 2011 is also the year Penn started renumbering their conventional reels with 40 for 4/0, 50 for 5/0, etc., to make the model numbering more consistent.
Name/Series: Squall Lever Drag
Construction:
- Lightweight graphite frames and sideplates
- Forged and machined aluminum spool
- High-strength marine grade bronze main and pinion gear
- Dura-Drag washers virtually elimite hesitation, even under extreme drag settings
- Switchblade harness lugs on 50 and 60 size models
- Ratched drag lever prevents "drag creep" caused by hours of trolling and vibrations
- Line Capacity Rings
- 5+1 shielded stainless steel bearing system
- Instant anti-reverse bearing with silent back up ratchet
