| Order Parts | View Schematic | Line Cap. & Specs. Info | Owners Manual | Reel Model |
 |  |  |  | 112H2 (3/0) Special Senator Light Tackle Trolling, SERIES 2, China |

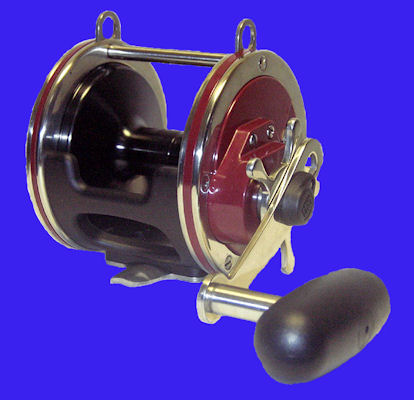

| | | | 113H2 (4/0) Special Senator Light Tackle Trolling, SERIES 2, China |
| | | | 113H2-LH (4/0) Special Senator Light Tackle Trolling, SERIES 2, China |
| | | | 113H2LW (4/0) Special Senator Light Tackle Trolling, SERIES 2, China |

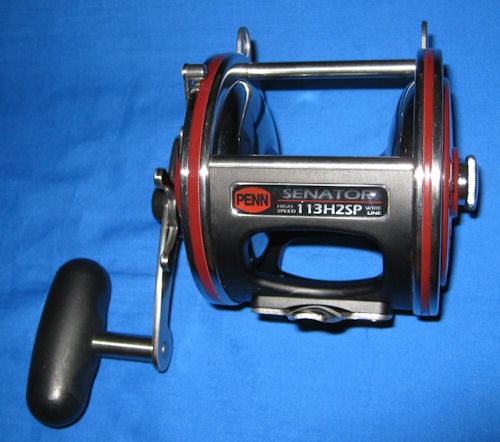

| | | | 113H2SP (4/0) Special Senator Wire Lining, SERIES 2, China |
| | | | 114H2 (6/0) Special Senator Light Tackle Trolling, SERIES 2, China |
| | | | 114H2LW (6/0) Special Senator Light Tackle Trolling, SERIES 2, China |
| | | | 114H2SP (6/0) Special Senator Wire Lining, SERIES 2, China |
| Model | Mono Cap. (yds/lb) | Braid Cap. (yds/lb) | Bearings | Max Drag | Gear Ratio |
Line Retrieve | Weight (oz) | First Year | Year Disc. |
|---|---|---|---|---|---|---|---|---|---|
112H2 (3/0)
 |
450/20 300/30 250/40 |
625/50 525/65 450/80 |
2 | 11 lbs | 4.0:1 | 29 | 22 | 2010 | |
113H2 and 113H2LH (4/0)
 |
440/30 370/40 270/50 |
925/50 750/65 650/80 |
2 | 11 lbs | 3.3:1 | 26 | 30 | 2010 | |
113H2SP (4/0)
 |
500/35 420/46 270/61 |
-- | 2 | 11 lbs | 3.3:1 | 26 | 35 | 2010 | |
113H2LW(4/0)
 |
490/40 360/50 310/60 |
1200/50 1000/65 875/80 |
2 | 11 lbs | 3.3:1 | 26 | 31 | 2010 | |
114H2 (6/0)
 |
450/50 390/60 290/80 |
1250/65 1075/80 925/100 |
2 | 22 lbs | 2.9:1 | 28 | 45 | 2010 | |
114H2SP (6/0)
 |
825/35 700/46 450/61 |
-- | 2 | 22 lbs | 2.9:1 | 28 | 48 | 2010 | |
114H2LW (6/0)
 |
560/50 490/60 360/80 |
1350/80 1150/100 950/130 |
2 | 22 lbs | 2.9:1 | 28 | 48 | 2010 |
REEL INFO:
If you need an affordable saltwater reel that packs enough punch to get just about any species back to the boat, check out the PENN Defiance. Defiance is built with stainless steel frame rings and uses a level wind so your line lays on the spool evenly. The reel features a machine-cut, marine-grade bronze main gear with hardened stainless steel pinion and HT-100 carbon-fiber drag washers. Four shielded stainless steel bearings with instant anti-reverse give the reel a smooth operation. The spool sports three easy to see line capacity rings so you can take inventory on the amount of remaining line and a large knob on the handle provides comfortable retrieves.
(bdoutdoors.com 2011 Review)
HISTORY: The Series 2 Senators replace the original models.
The H2 reels replace 112H, 113H, 113HSP, 113HLW, 114H, 114HSP, 114HLW. MADE IN CHINA.
IMPORTANT! ****Parts are NOT compatible with the older reels.****
Name/Series: Senator SERIES 2 (H2 reels) (Made in China)
Construction:
Lightweight graphite frame
Machined and anodized aluminum spool
Precision-machined stainless steel pinion gear
High-strength marine grade bronze alloy main gear
Stainless steel frame rings enhances rigidity to prevent "frame-flex"
HT-100™ drag washers provide smooth drag under heavy loads
Multi-disc star drag system for smooth and consistent drag
2 shielded stainless steel ball bearings
Stainless steel reel stand
Convertible power handle
Heavy-duty clicker
