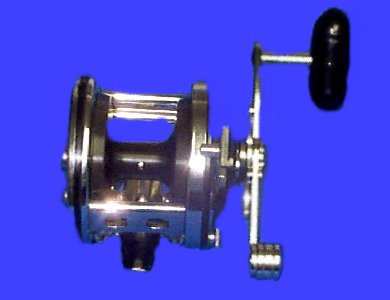

TROUBLESHOOTING HELP REQUESTED! Please [Contact us] if you find a bad link or get an error message, etc, and send us info about what page or item you were on when you saw the issue, with a link if possible, or a screen shot. Not the error screen, we need to know where you were before the error and what you were clicking on. Thanks! ~Mo, Parts & Tech SupportPenn 506HS Jigmaster High Speed Reel
Model Specs:
More Info- Reinforced side plates.
- Counterbalanced soft grip handle.
- Chrome plated brass exposed metal componants.
- Stainless steel ball bearings and pinion gear and a high strenth bronze alloy main gear.
- Easy to operate star drag.
- HT-100 multi-disc star drag.
- Counterbalanced soft grip handle.
- Dual Eccentric System.
Mono Cap (yds/lb) |
Braid Cap (yds/lb) |
Bearings | Gear Ratio |
---|---|---|---|
500/12 | 2 + 1 BB | 5:1 |
Take Apart Construction
The term "Take-Apart" refers to the feature of quick and easy take-down of the reel for cleaning or spool change. To effect this, unscrew the knurled take-apart screw ( part TA 200 ) three turns to the left and then pull it outward ( away from plate ), at the same time rotate the right side plate about 1/4 inch to the left ( counter-clockwise ) and pull it away from the reel frame, taking care not to drop the freed spool. To re-assemble, reverse the entire operation, making sure to screw the take-apart screw into the reel frame, as otherwise the right side plate might be lost.
TA-200 became 129-200
Many of these parts will become unavailable in the future.
Click above for more info
001-1180523
REPLACES ORIGINAL PART NUMBER 1-506 ON SOME REELS
3-113H-PRO
Please read the detailed description for this custom aftermarket part!
006-1180917◉
MULTI USE See Description
Used on multiple models in different quantities.
CUU-PENN500▲
Fits: 112H, 210M, 500, 500S, 501, 505HS, 506HS, 309M, Newell 200/300/400Series, ProGear 255/251
007C-1181051▲
See design change notes
9-60
Variations allow for more/less play in handle - see description.
010-1181200▲
Click to read more about the two types of 10-505 stars
012-1181270☀
REPLACES ORIGINAL PART NUMBER 12-99, 12-110 ON SOME REELS
CSD-012-500-SS▲
**For use with stainless P316112H501 gear set.
016-1181565☀
REPLACES ORIGINAL PART NUMBER 16-60 ON SOME REELS
Used on multiple models in different quantities.
017-1181594☀
REPLACES ORIGINAL PART NUMBER 17-60
Used on multiple models in different quantities.
018-1181615☀
Used on multiple models in different quantities.
018-1181623☀
Used on multiple models in different quantities.
020-1181756
REPLACED BY PART NUMBER 20-112H2
Direct product replacement: 20-112H2 Spring, Eccentric Spring $1.30
020-1288916♦
REPLACES ORIGINAL NUMBER 20-60L ON SOME REELS
021-1181855☀
REPLACES ORIGINAL NUMBER 21-285 ON SOME REELS
Reels that used 21-285 were: 60,60-LH,65,79,80 (Conv.),85,185 Seaboy,190 Seaboy (1990+),210M,285M, 320GT,320GT2,320GT2LC,321GT2-LH,321GT-LH,350M aka 350,505HS,506HS
021-1181860
Direct product replacement: 21-209 Lever, Eccentric Lever $2.55
026-1182116▲
031-1182654☀
034-1182810▲
This can be used as a sub for the 34-49 or 34-45 if wanting a LONGER stud screw
034C-1182875▲
037A-1183114
Direct product replacement: 37A-506SS Spacer Bar, Stainless Steel (Custom) $25.00
038-1183134☀
039-1183178♦
REPLACES ORIGINAL NUMBER 32-18 and 31-110 ON SOME REELS
Used on multiple models in different quantities.
113H Fits All Versions.
039-1183182♦
REPLACED BY PART NUMBER 38-110, 38-49 ON SOME REELS
Used on multiple models in different quantities.
062-1184028▲
113H Fits Frame Posts with a clicker and Half Frame Versions.
063-1184048☀
MULTI USE See Description
113H Fits Frame Posts with a clicker and Half Frame Versions.
069B-1184129♦
Used on multiple models in different quantities.
098-1184361▲
Stainless Steel Gear Sleeves by other manufacturers. Click link to view options.
110-1184437♦
REPLACES ORIGINAL PART NUMBER 23A-60 ON SOME REELS
149-1184702♦
Used with the graphite clamps 33-340, 33N-113, aluminum 33-TRQ, 33-TRQS and iron alloy clamp 33i-113 and 33-16VS
168-1184802☘
Fits 23-60, 23-16S knurled nuts (See details for list of reels)
168-1184800
Fits 23-60 knurled nut (see details for list of reels)
REPLACED BY PART NUMBER 168-60 or 168-TANI
Direct product replacement: 168-60 Wrench $1.30
