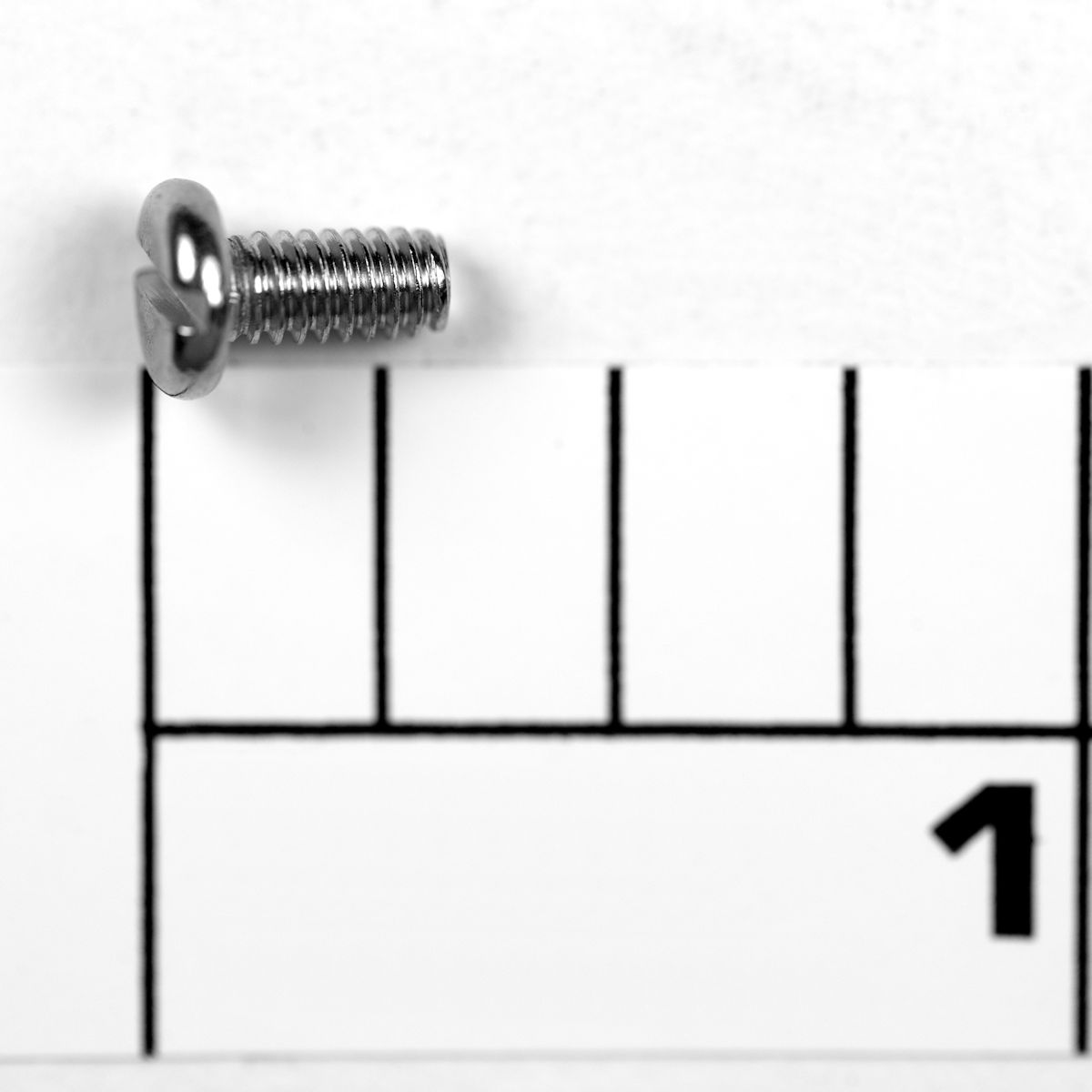

MEASUREMENTS: #5-40 EN-2 X .250
MAY BE INTERCHANGEABLE WITH SCREW 23-750, SAME THREADING TYPE AND SCREW HEAD, JUST A SHORTER LENGTH ON THE 23-750
Cam Housing Screw (uses 2) on:
16S, 30S, 30T, 30TW, 80ST, 80STW
Counter Balance Weight Screw (uses 1) on:
440SSg, 450SSg, 550SSg
Click Plate Retaining Screw (uses 1) on:
50VSX, 50VSW (Older), 70VS-Before, 70VS-After
Housing Plate Screw (uses 3) AND Bail Release Saddle Screw (uses 2) on:
704, 705
Gear Retaining Screw (uses 2) on:
130S, 130ST
Housing/Trip Cam Retaining Screw (uses 1) on:
420SS, 430SS, 440SS, 450SS, 550SS, 4300SS, 4400SS, 4500SS, 5500SS
Bearing Cover Retaining Screw (uses 3) on:
760, 760L
Non-Handle Side: Ring Screw (uses 3) AND Inner Spacer Screw (uses 3) on:
500S
PC Mounting Board Screw (uses 4) on:
805-835 Downriggers
