Installation Notes
To replace the click tongue and button on models where it is peened into place, use a dremel drill with a fine tip to remove the old click tongue and click button. Then peen the new ones into place. Peening is when you gently tap the end of the click button with a small hammer until the metal spreads out enough to hold the click tongue in place.
NOTES FOR DIFFERENT MODELS AND CHANGES:

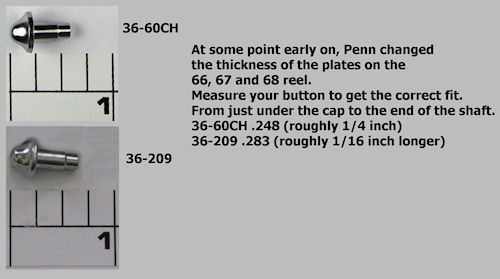

66, 67 and 68:On older reels a 36-60CH may be required. It measures .248 (roughly 1/4 inch) from just under the cap to the edge of the dropdown, at the "neck".
150:Measure the necks! On older 150 reels a 36-60CH may be required. It measures .248 (roughly 1/4 inch) from just under the cap to the edge of the dropdown, at the "neck".
209: The 36-209 measures .283 (roughly 1/16 inch longer) Penn may have changed the 27-66 plate at some point, although there are no notes to that effect.

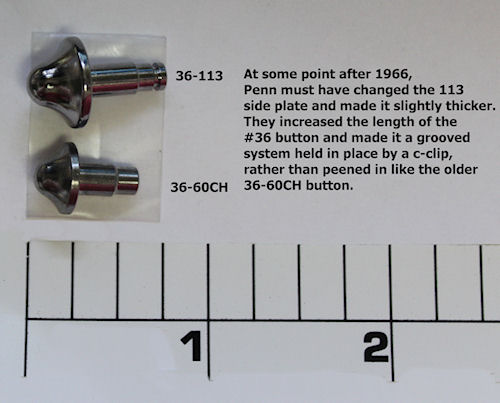

113 SenatorOn older 113 reels a 36-60CH may be required. It measures .248 (roughly 1/4 inch) from just under the cap to the edge of the dropdown.
The 36-113 measures .479 (roughly 1/8 inch longer) Penn may have changed the 27-113 plate at some point, although there were no notes to that effect.
Take note that the button head is also smaller on the older 36-60CH
