INSTALLATION TIP:

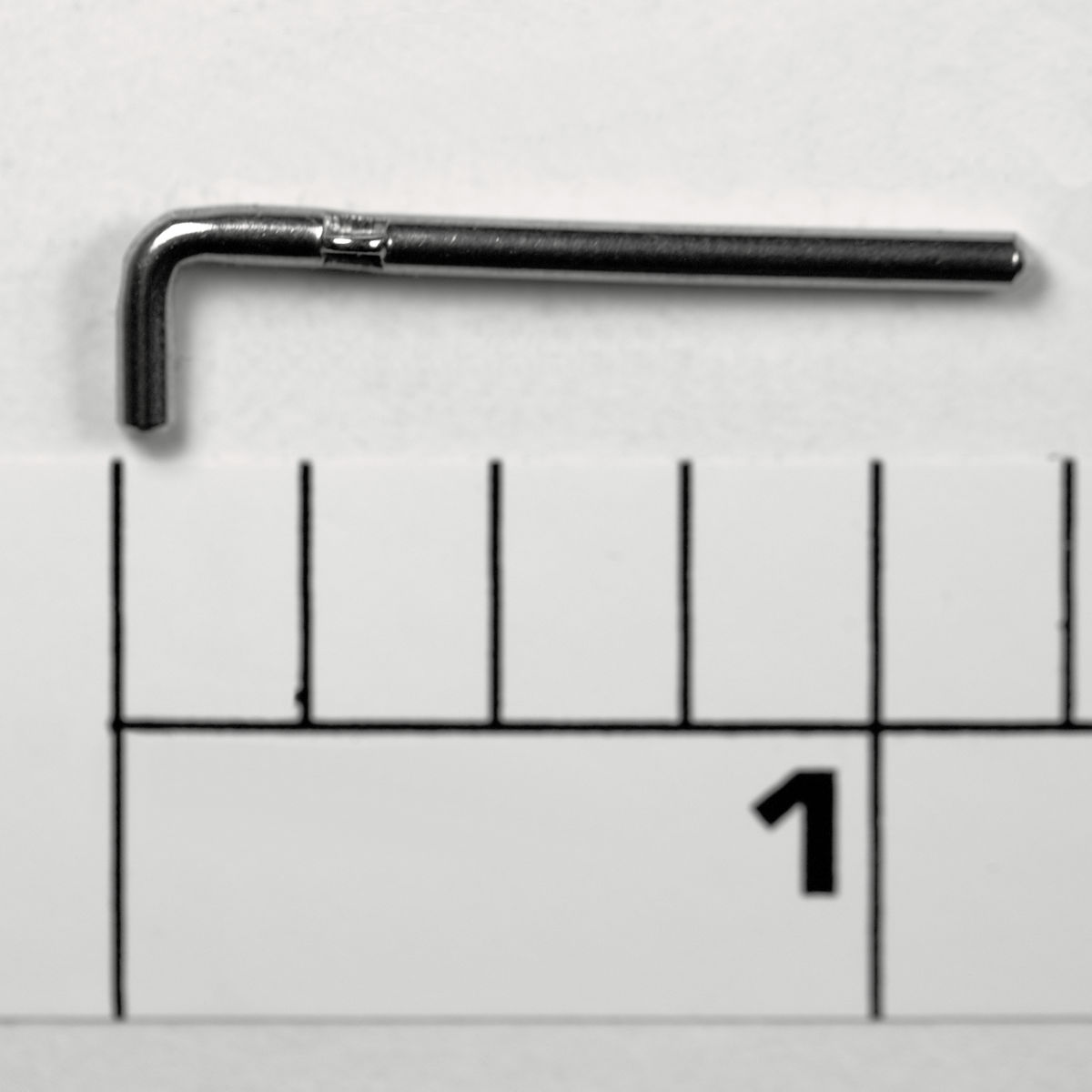

With the 34B-3000P pivot shaft in position, put the upright end into the hole in the 34-3000P bail arm and turn the bail arm turned so that it is in the open position and the spring will be at it's loosest. Then slide the bail spring onto the pivot. Use needle nose pliers to pull the spring down onto the pivot shaft so that the tip of the pivot shaft is exposed, then add the 34D-3000P pivot guide and still holding the spring down, maneuver the guide into the corner of the rotor space.
