Knob is aprrox 4 3/8" long
25-50ViSSP ViS Molded Knob Assembly Kit
Ten Piece Kit Includes:
(1) 1361396 ~ 24C-50ViS Metal Handle Knob Cap Plate
(2) 1362971 ~ 24S-50ViS Metal Handle Knob Cap Screw
(1) 1361398 ~ 25-50ViS Ergo Rubber Handle Knob
(2) 1184056 ~ 63A-50 Screw
(1) 1361426 ~ 63B-50ViS Handle Screw Washer
(2) 1411589 ~ 63C-50ViS Handle Rivit Washer
(1) 1361435 ~ 91-50ViS Handle Rivit
Fits Reels:
ANY REEL ALREADY USING EITHER 91N-50 RIVET OR 91-50VIS RIVET
See dropdown menu for complete list.
NOTES

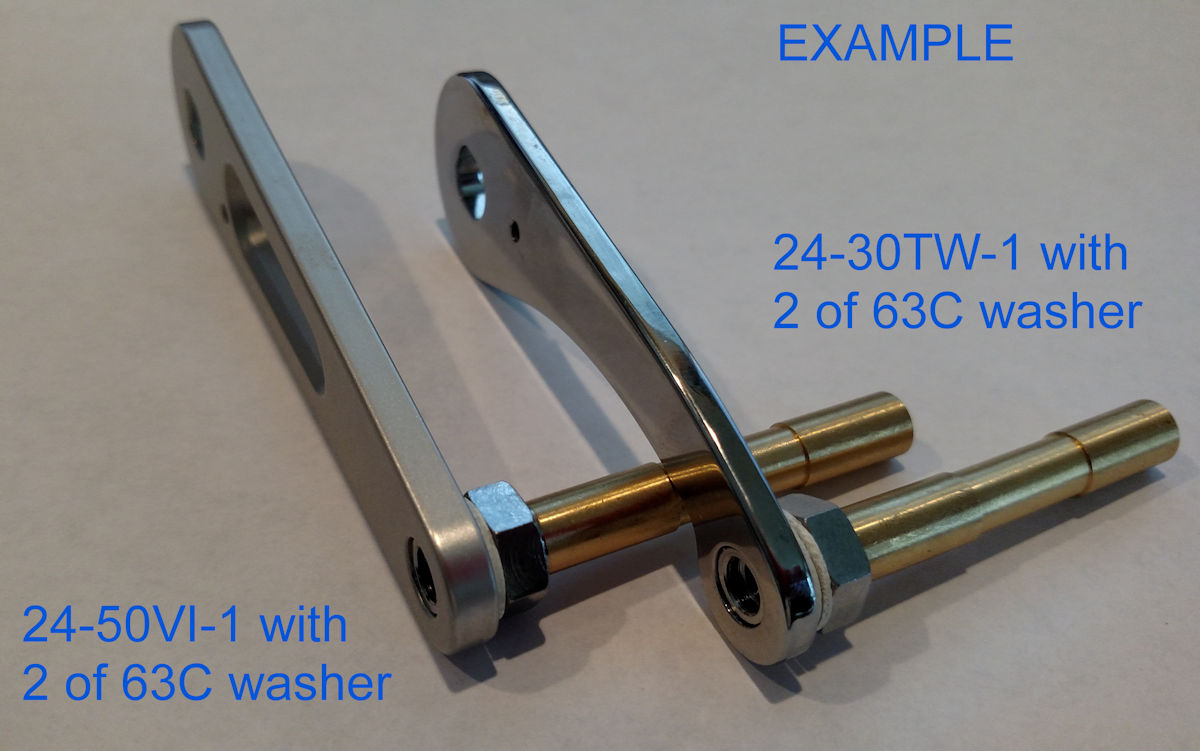

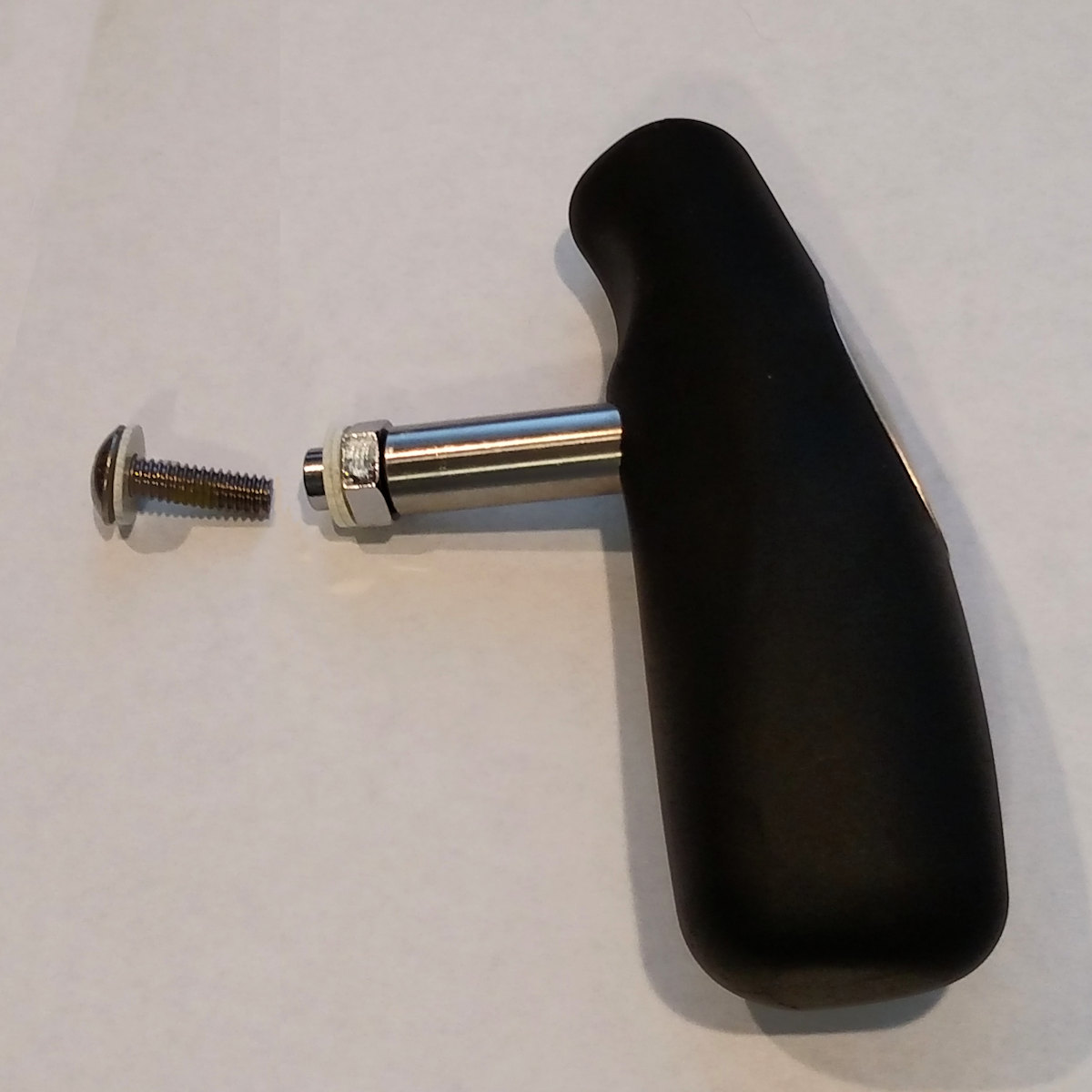

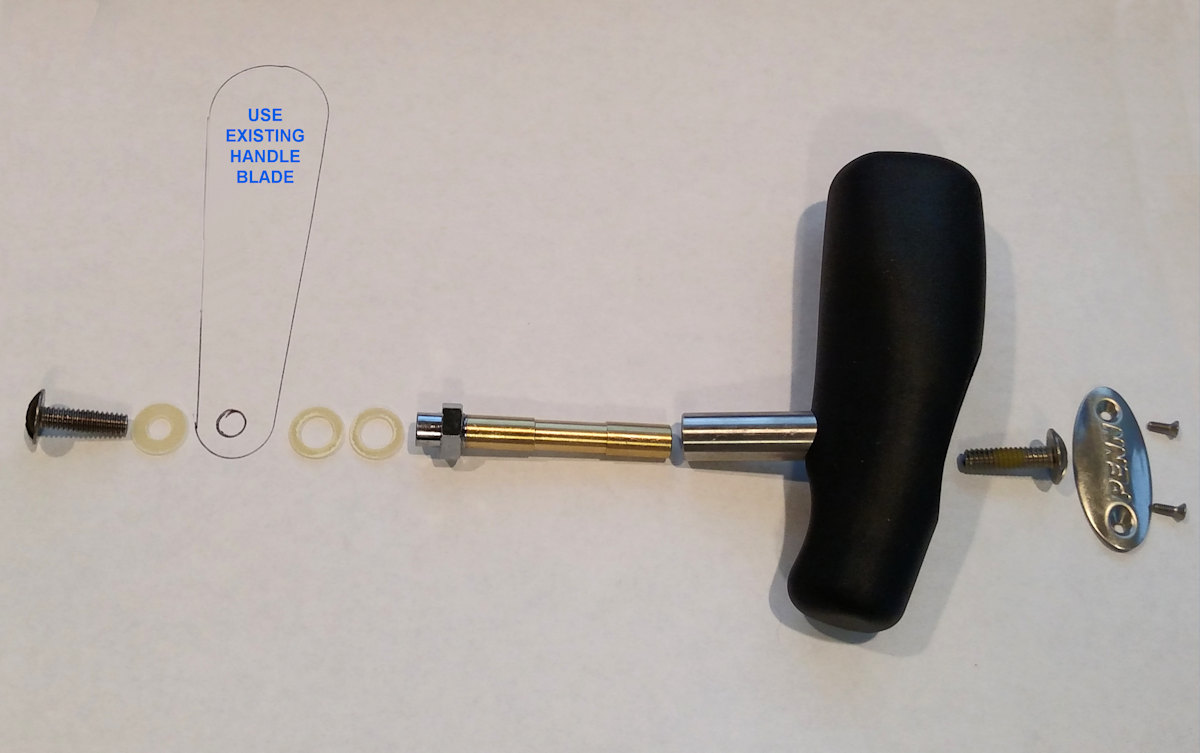

There are 2 of the 63C-50VIS washers included in this kit. The VI and VIS reels will only need one. The extra washer is for the older other models of Penn Reels that used the 91N-50 rivet, where the handle blade might be a little thinner and therefore may need the extra washer to get the 91-50VIS rivet to line up properly on the older handle blade. Pictures show the handle knob assembly, the kit laid out to show all of the parts, and a example of use for one or two of the 63C washers.
LOCTITE ON THE SCREWS: If you have trouble installing the two 63A-50 long screws because of the loctite on them? Working the screws back and forth usually clears some of the loctite, or you can use a wire brush to gently remove some of the loctite from the threads to resolve the fit.
Kit created by MysticParts.com using authentic Penn reel parts.
