Please Take Note:

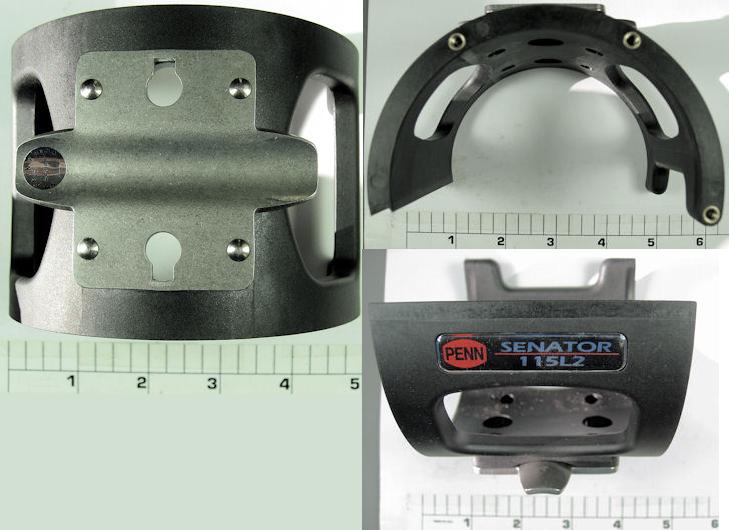

The 183-114L2 graphite half-frame has a scooped out edge which uses a 37M-114 thinnerpost for a line guard which is included with this housing. The housing has four screw
holes on each side that use the 39-13 machine threaded side plate screws.
The original top post of a reel is still used with this housing. If you are modifying an existing reel,
be aware this housing is for use with five hole side plate rings. If your existing outer side rings have
eight holes, then replace them with one 2N-114 and one 2N-114H five hole outer rings.
There is no need to change the inner rings, since the extra inner ring screw holes will be hidden
by the half-frame graphite housing.
It is also likely that you may have to squeeze the frame with a hand clamp to line up the top frame screws.
The 183-114L2 graphite half-frame uses the push in from the bottom of the reel stand
type studs, 34-16VS, which can be installed after the reel has line on it.
This frame style is the pre-cursor to the newer designed 114H2 series of Penn Senator reels.
